Next-Gen Testing for Solid-State & Pouch Cell Batteries

Unlocking Deeper Insights into Battery Performance

Request a quote
Download ASC Portfolio

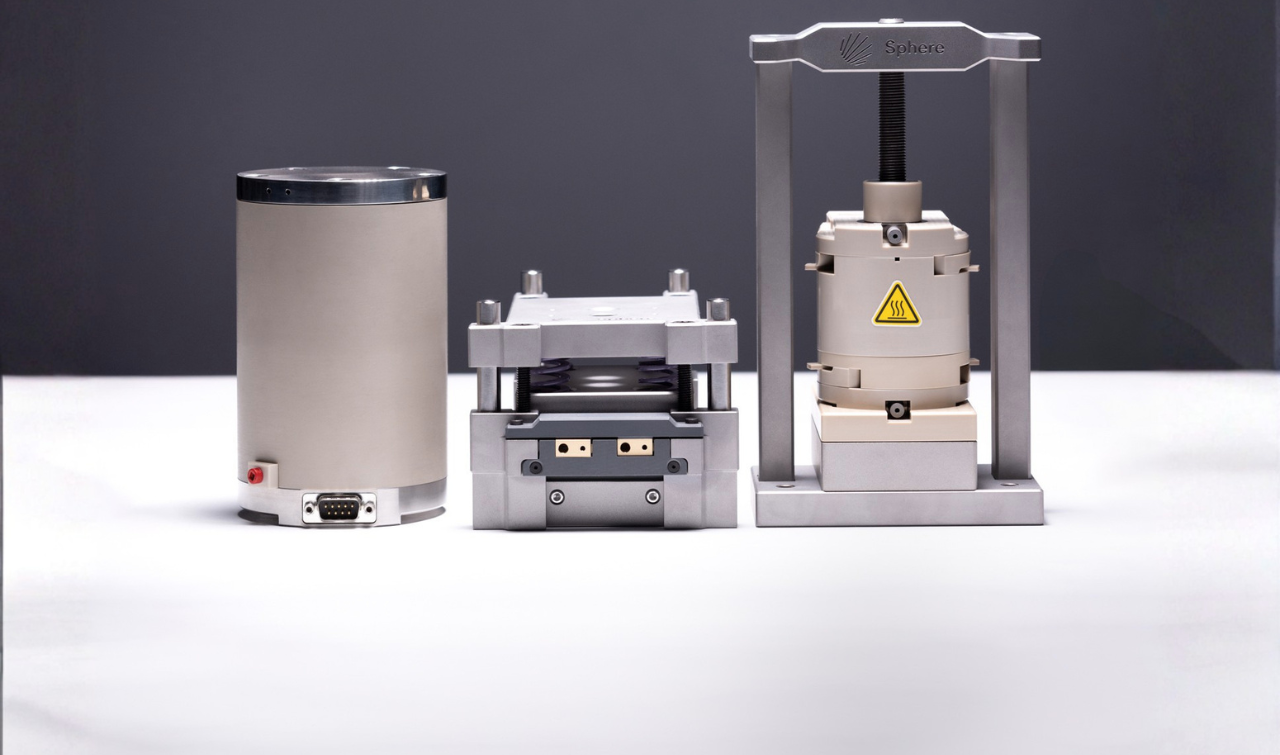

Overview of cell formats

Your research grows. Your test cells grow with it, from powder pellets to
full-size pouch cells.

0
1

ASC-T+

Dimensions: 210 x 120 x 100 mm

Weight: 5.5 kg

Pressure range: 0-400 MPa

Temperature range: 25 to 200°C

0
2

ASC-X

Dimensions: 65 x 65 x 57 mm

Weight: 750 g

Pressure range: 0-400 MPa

Temperature range: -20 to 120°C

0
3

ASC-AD

Dimensions: 65 x 65 x 60.5 mm

Weight: 770 g

Pressure range: 0-400 MPa

Temperature range: -20 to 120°C

0
4

ASC-AD+

Dimensions: 90 x 90 x 145 mm

Weight: 2.2 kg

Pressure range: 0-100 MPa

Temperature range: -20 to 75°C

0
5

ASC-G

Dimensions: 65 x 65 x 56 mm

Weight: 740 g

Pressure range: 0-400 MPa

Temperature range: -20 to 80°C

0
6

ASC-P

Dimensions: 157 x 112 x 70.5 mm

Weight: 3.8 kg

Force range: 0-20 kN

Temperature range: -20 to 80°C

0
7

ASC-P+

Dimensions: 157 x 112 x 100 mm

Weight: 4.8 kg

Force range: 0-20 kN

Temperature range: -20 to 80°C

0
8

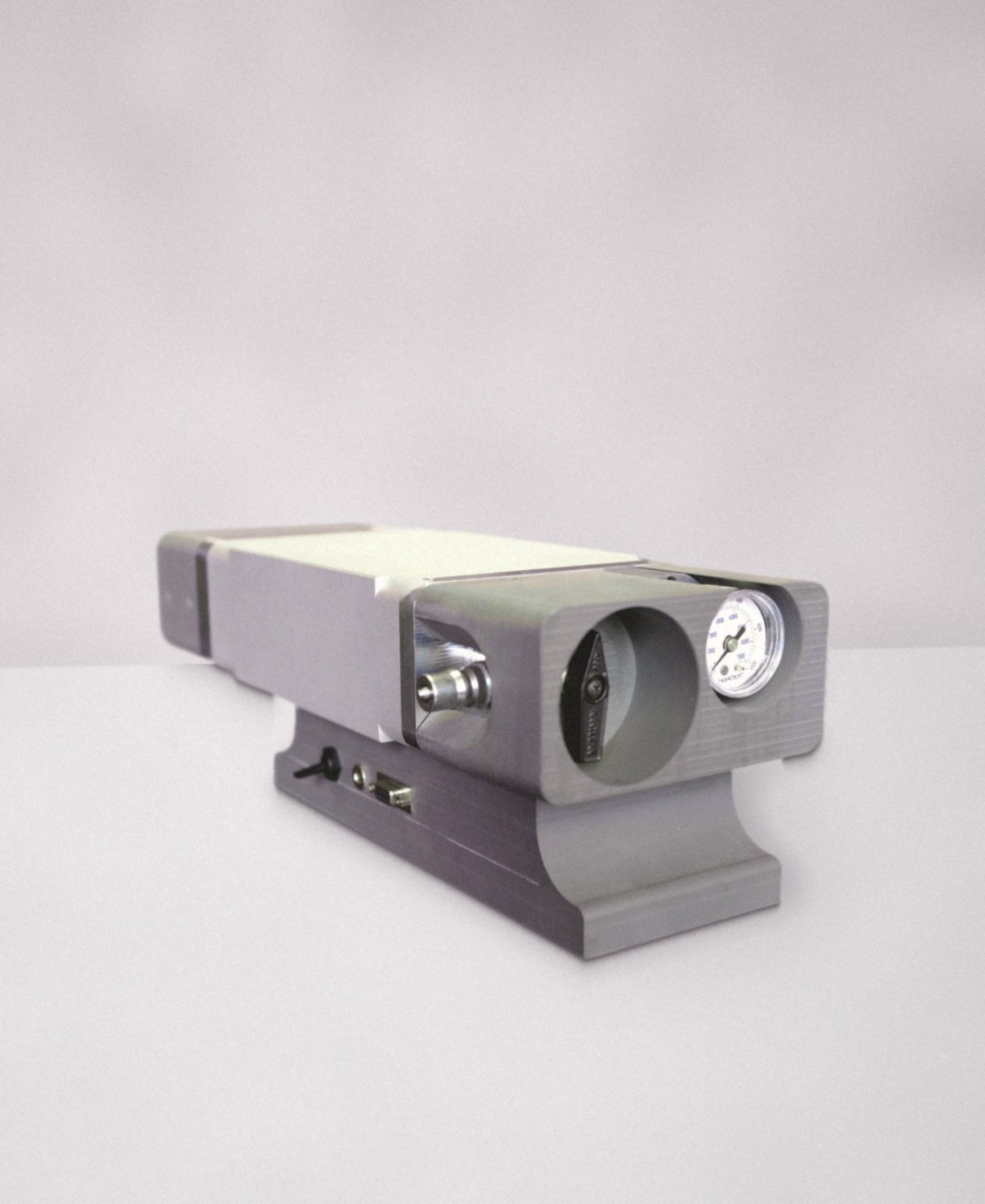

ASC-IP

Dimensions: 352 x 120 x 132 mm

Weight: 4 kg

Pressure  ranges: 0-6 MPa

Temperature range: 0 to 80°C

Designed for Accuracy

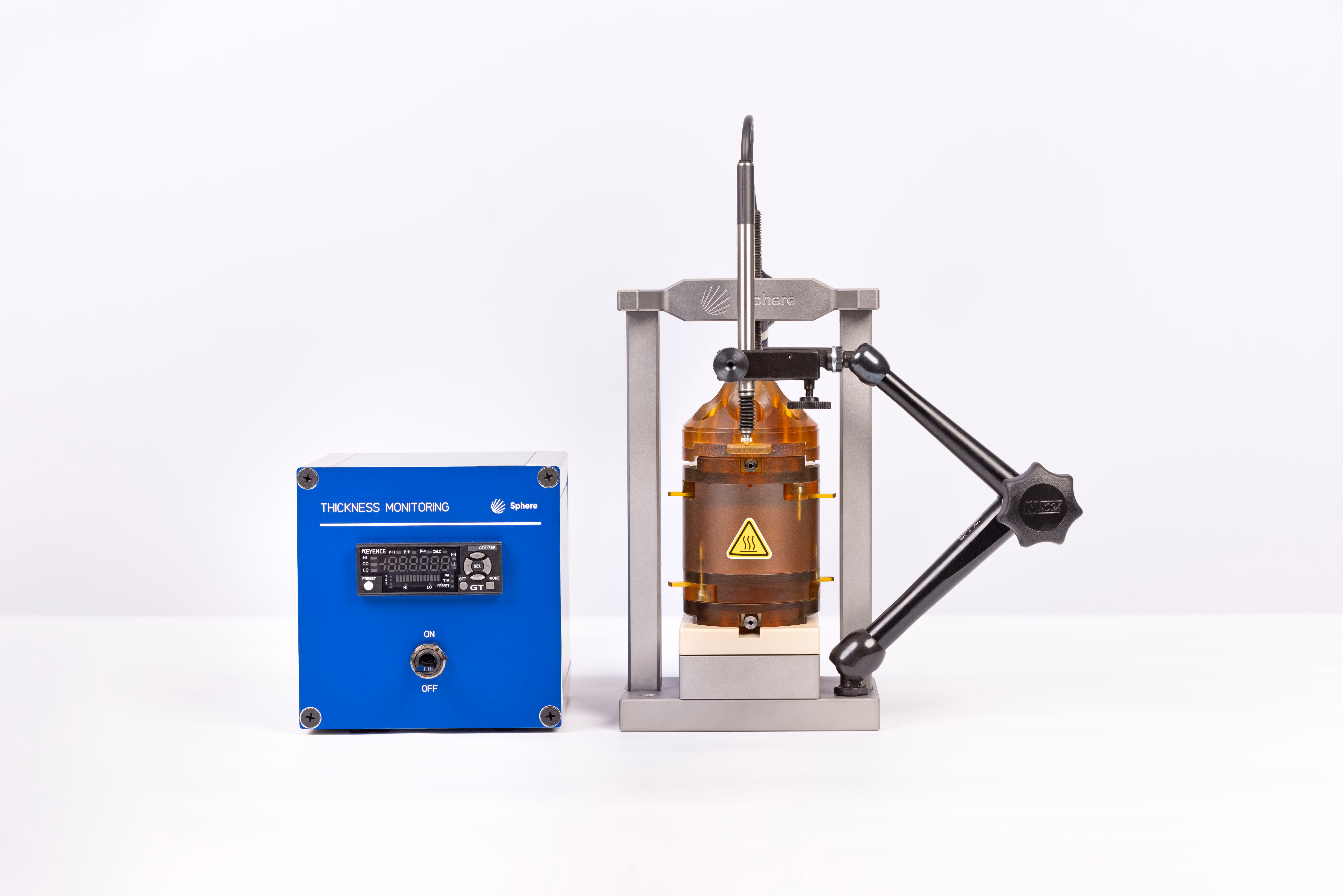

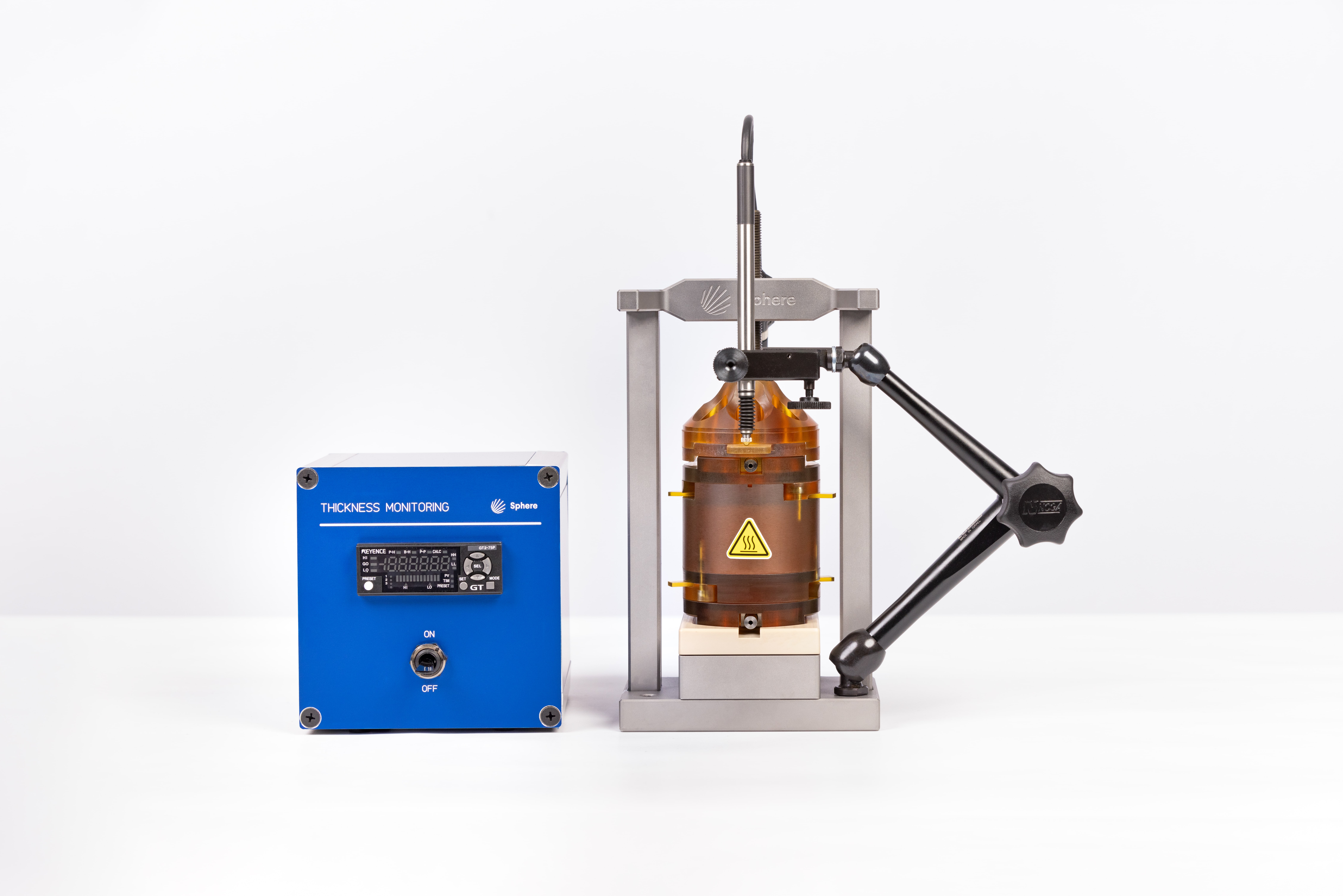

A machine that is sitting next to a blue box.
01
Accurate Testing

In-operando monitoring of pressure & thickness.

02
Modular & Scalable

Compatible with different configurations.

03
Designed for Research

Optimized for solid-state battery R&D.

04
Seamless Integration

Works with standard lab equipment.

Precision Testing, Predictive Insights

Enhancing Your Solid-State Battery Testing with Seamless Pressure Monitoring
and In-Depth Performance Insights

Pressure Monitoring

Sample pressure monitored during electrochemical tests.

Pressure Stabilization

Sample pressure monitored during electrochemical tests and stabilized using springs.

Swelling Behavior Analysis

Pressure evolution of a battery cell based on swelling and breath phenomena.

Pressure Stabilization

Sample pressure monitored during electrochemical tests and stabilized using springs.

The right tool for your R&D

Get more accurate and reproducible results from your battery testing.

Discover Our ASC Setup

Precision, Control and Insight for Solid-State Battery Research

Innovating Together

"New AI technologies will transform the battery industry. The ever expanding data volumes in battery research, manufacturing, testing and life cycle management provide a massive opportunity for AI based innovation and productivity – while leveraging the rare talent with deep battery know how. With Sphere-Energy, businesses can engage with these new technologies today along the end-to-end battery life cycle."

Frank Riemensperger
Former CEO at Accenture DACH, Advisory Board Chairman at Sphere Energy

‍

‍

"Working with this team has been an amazing experience. Their deep technology expertise in the battery field, combined with a truly collaborative approach, makes them an outstanding partner."

Dr. Vick Singh
Chief Operating Officer, Dragonfly Energy

‍

‍

"Festool is evolving into a data-driven organization. Having the right infrastructure and data governance in place is crucial and Sphere Energy has been a key partner in building a strong data foundation as well as driving AI-powered innovation."

Wolfgang Knorr
CTO/COO, TTS Tooltechnic Systems Holding AG

‍

‍

"Sphere is an important partner for us. By using their services for intelligent data generation and advanced data analysis, we have been able to significantly accelerate R&D projects."

Ralf Wagner
Co-Founder E-Lyte

Insights & Reports

View all articles

Proven Science, Published Results

View all mentions

Solid-State Lithium Metal Batteries with Improved Performance via Polymer Electrolyte Interface Modification

Tuning the Electrochemical Stability Window of Li3YCl6 by Fluorine Doping to Enable 4.8 V Solid-State Battery

Performance Optimization of Electrospun Lithium-Ion Conducting PAN/PEO Solid Polymer Electrolyte

Unveiling Insights in the Formation Mechanism of Li3PS4·2THF Solvato-Complex: H2S Release and Solvent-Phase Interaction

Trusted by Leading Teams Worldwide
